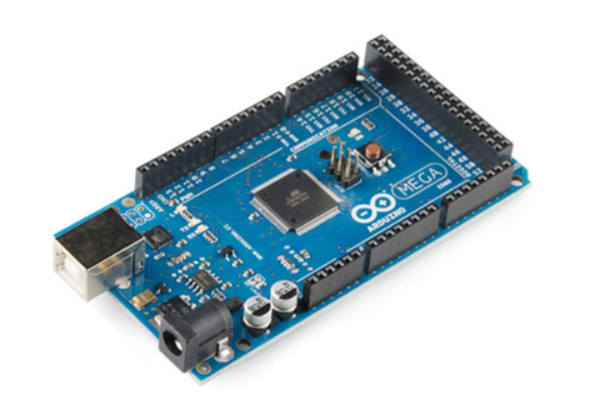

Arduino Mega 2560 Rev3 Development Board
HighCapacity 8Bit Microcontroller Board with 54 Pins
The Arduino Mega 2560 Rev3 is a flagship 8bit board powered by the ATmega2560 microcontroller. Designed for projects that require significant I/O capabilities and memory, it is the goto choice when the standard Uno's resources are insufficient. The board is compatible with most Arduino shields and can be programmed via the Arduino IDE.
54 Digital & 16 Analog Pins - Supports extensive peripheral connections
Massive 256KB Flash & 8KB SRAM - Handles complex code and large data sets
Supply voltage is recommended at 7-12V DC via the barrel jack, or 5V via USB
In the Arduino IDE, select the "Arduino Mega or Mega 2560" board from the Tools menu
Operating voltage is 5V. I/O pins are not 5V tolerant for 3.3V devices
Technical Specifications
| Parameter | Value |
|---|
| Microcontroller | ATmega2560 |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-12V |
| Digital I/O Pins | 54 (15 provide PWM output) |
| Analog Input Pins | 16 |
| DC Current per I/O Pin | 20 mA (recommended) / 40 mA (max) |
| Flash Memory | 256 KB (8 KB used by bootloader) |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Clock Speed | 16 MHz |
| Dimensions | 101.52 x 53.3 mm |
= Key Features =
Four Hardware UARTs - Supports simultaneous serial communication with multiple devices, ideal for complex systems
Massive GPIO Count - 54 digital I/O and 16 analog inputs provide unmatched flexibility for connecting sensors and actuators
Shield Compatibility - Works with most shields designed for the Arduino Uno, protecting your investment
= Applications =
- 3D printers and CNC machines
- Advanced robotics requiring many servos and sensors
- Large-scale data logging and monitoring systems
- Projects that exceed the memory or pin count of the Uno
Full Uno Compatibility - Uses the same programming environment, libraries, and shields
Powerful Base for Demanding Projects - Handles complex code that an Uno cannot store
√ ATmega2560 with pre-loaded bootloader for easy USB programming
√ USB-B connector for programming and power
√ Standard power jack for external 7-12V adapter
